UNIMAT CNC System
The UNIMAT CNC is a versatile, modular CNC system specifically designed for use in model making and prototyping. It allows for precise work in minimal space and offers a wide range of applications thanks to its modular construction.

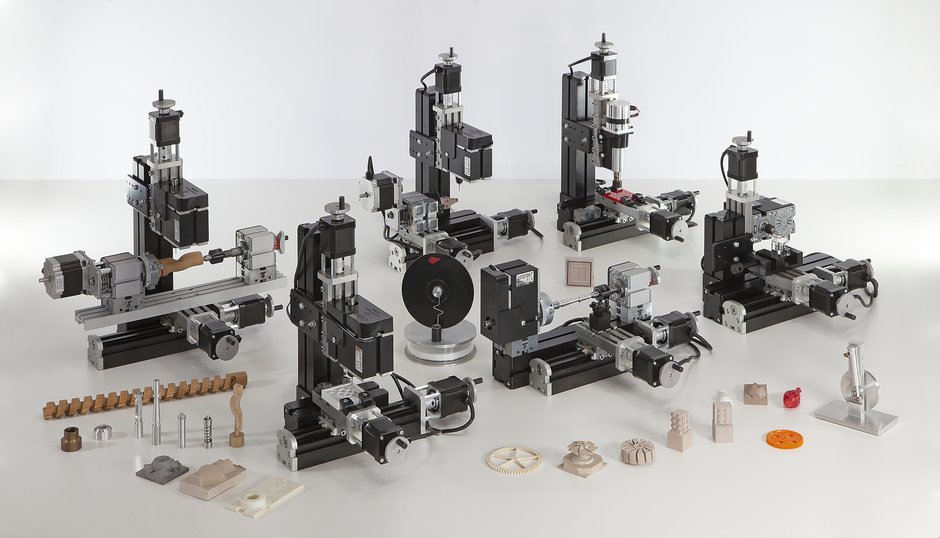

Modular design
Supports lathe, 3-axis/4-axis mill, hot wire
cutter
Precision manufacturing
State-of-the-art CNC accuracy
Material compatibility
Wood, plastics, wax, non-ferrous/soft metals
Compact dimensions
Ideal for limited-space workshops
🛠️ Expansion Options
The UNIMAT CNC can be enhanced with optional accessories, including:-
- ✔ Laser engraving module for wood, leather, and acrylic
- ✔ 3D printer extension for rapid prototyping
- ✔ Hot wire cutter for foam and lightweight materials
With the UNIMAT CNC, you get a reliable, flexible, and precise CNC system suitable for both beginners and advanced users.

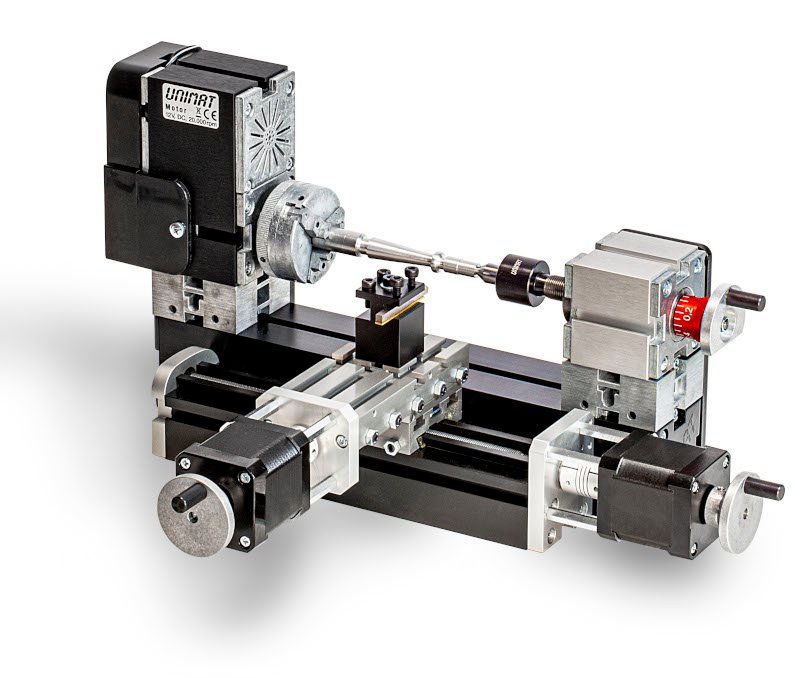

UNIMAT CNC Lathe UNI-DREH
3-Jaw-Chuck, precision live centre, tool post and turning tool. Machinable materials: wood, acrylics, wax, non-ferrous and soft metals.
Drive
Steppers, 2 A, 1.8°
Number of CNC axes
2
Max. positioning speed
300 mm/min
Head spindle
4000 U/min
Travel X/Z
50 mm / 145 mm (expandable)
Accuracy
0.05 mm

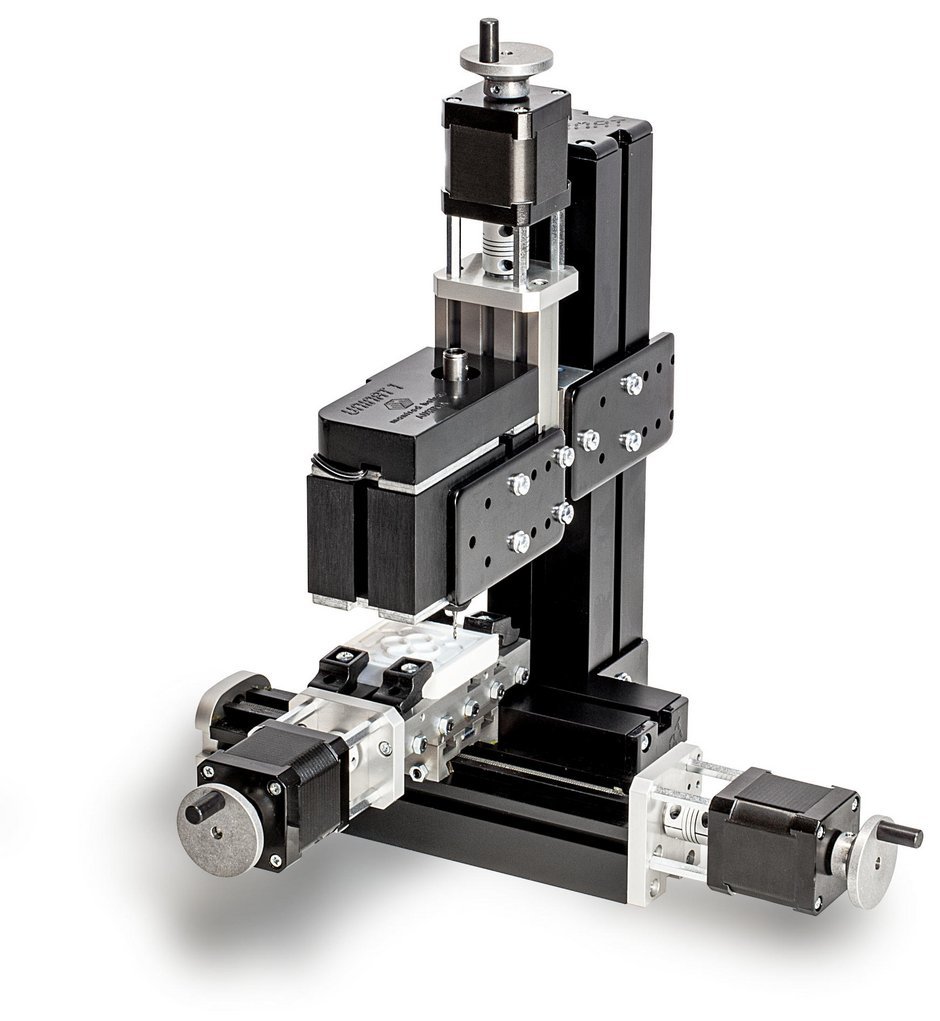

UNIMAT CNC 3-Axis Mill UNI-FRAES-3
For vertical or horizontal set-up.
CNC-Axes
3
Drive
Steppers, 2A, 1.8°
Max. positioning speed
300 mm/min
Travels Z/Y
50 mm (expandable)/50 mm
Travel X-axis
145 mm (expandable)
Accuracy
0.07 mm

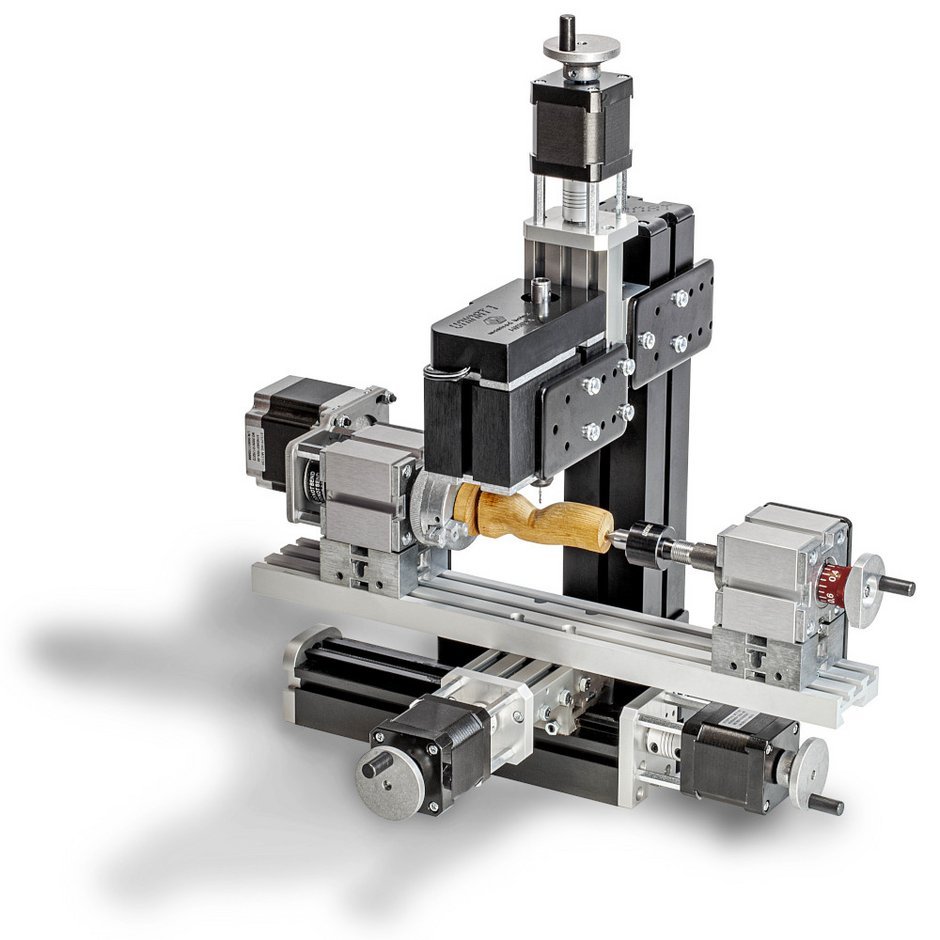

UNIMAT CNC 4-Axis Mill UNI-FRAES-4
Number of CNC axes
4
Drive
Steppers, 2 A, 1.8°
Max. positioning speed
300 mm/min
Travels Z/Y
50 mm (expandable)/50 mm
Travel X-axis
145 mm (expandable)
Increment Rotation Axis
(360°/3200)*0.5 = 0.05625°
Accuracy
0.07 mm
Head Spindle
4000 rpm, with 1/8" collet

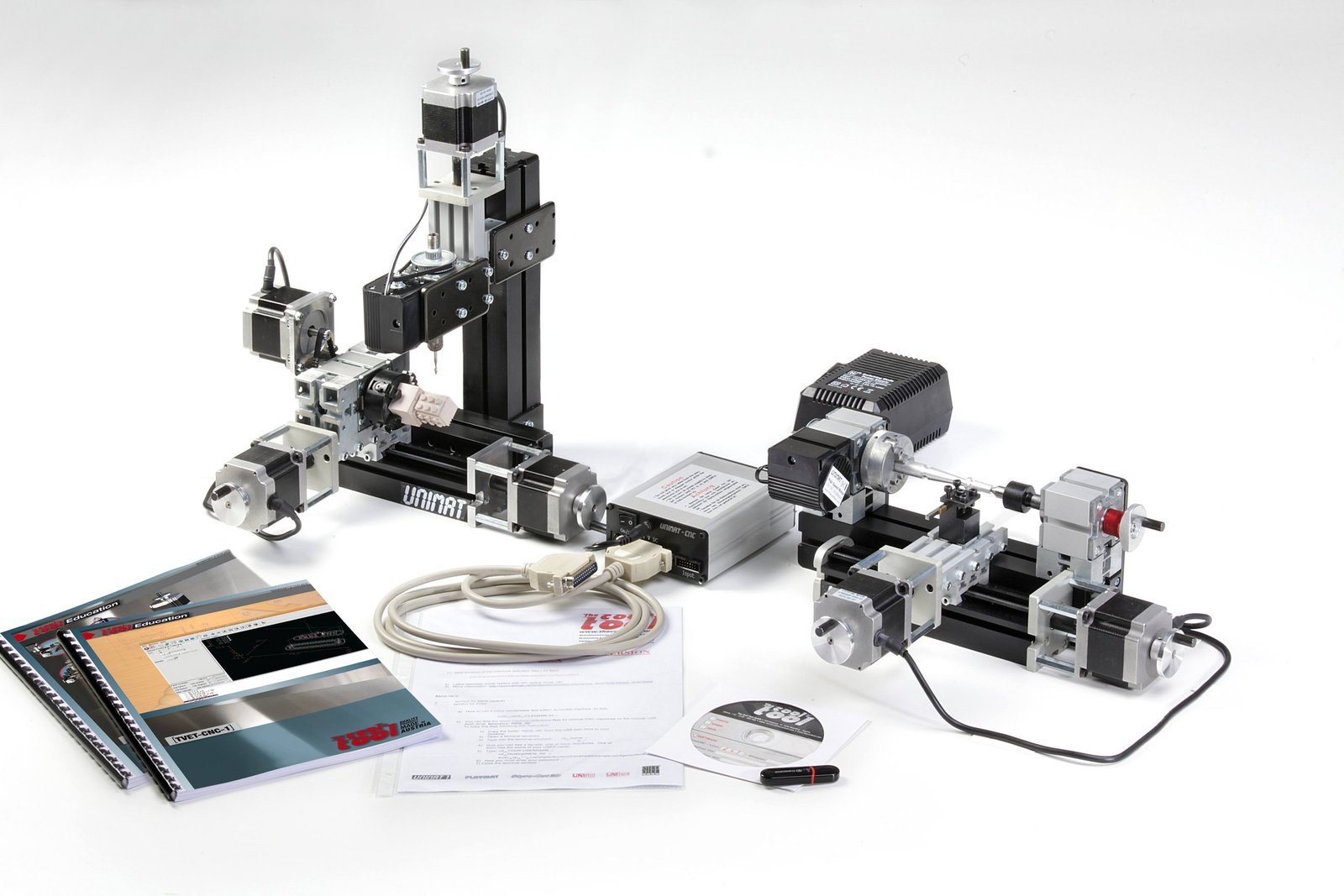

UNIMAT CNC Complete Set UNI-CNC-SET
Incl. all parts for the UNIMAT-CNC machine variants UNI-DREH, UNI-FRAES3 and UNI-FRAES4, plus cross plate for bigger parts.
Number of CNC axes
4
Drive
Steppers, 2 A, 1.8°
Max. positioning speed
300 mm/min
Travel Z/Y
50 mm (expandable)/50 mm
Travel X-axis
50 mm/145 mm (expandable)
Accuracy
0.07 mm
Head Spindle
4000 rpm, with 1/8" collet
Chuck
3-jaw metal, 4-jaw plastic
Vertical Mill UNI-FRAES3EXT
Same as UNI-FRAES3 but 80mm, Y-, Z-travel and controlled milling spindle (164420 CNC)
Number of CNC axes
3
Drive
Steppers, 2 A, 1.8°
Max. positioning speed
300 mm/min
Travel Z/Y
80 mm / 80 mm
Travel X-axis
145 mm (expandable)
Accuracy
0.07 mm
Increment rotation axis
(360°/3200)*0.5 = 0.05625°
Head spindle speed
15 000 rpm, with 1/8" collet

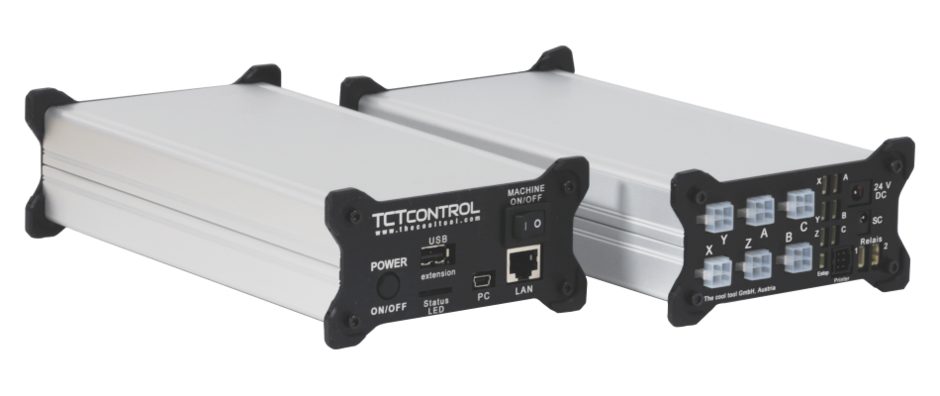

Controller TCTCnotrol TCTCONT4
Required for controlling the UNIMAT CNC machines
The pre-installed software allows for loading, manipulating and processing of ISO standard g-code files (RS-274). It also offers an editable tool table and tool path simulation. in addition to the manual also a training book for introduction to CNC and g-code programming is included.
Software and Drivers
Win (7, 8, 10) OSX (getestet bis OSX 10.15.x), Linux
Connectivity
USB, Ethernet, WIFI (optional)
Axes controllable
4 (upgradeable to 6)
furhter IOs:
6x input for (limit/end) switches, 1x E-stop, 2x relays,
0-10V control signal
Micro steps
16
Board
1GHz CPU, 512MB DDR3 RAM, 4GB storage
Power supply
External, 110-240 V, 24 V, 5 A
