Vemco Virtual Desktop- Simulator VRTM-HW

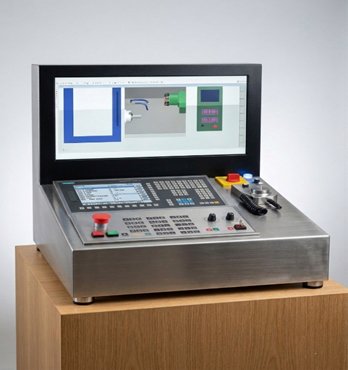

SIEMENS TURN+MILL

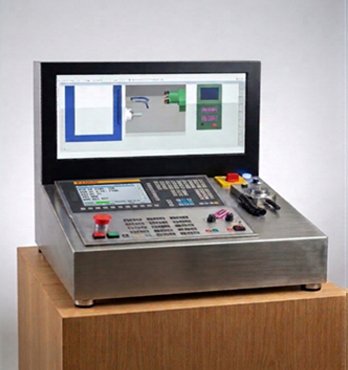

FANUC TURN+MILL

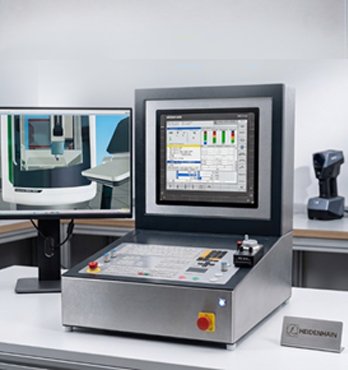

HEIDENHAIN 5 AXIS MILL
Technical Specifications & Features
Authentic Hardware Control
- Operation Modes: Fully functional keys for REF, AUTO, EDIT, MDI, JOG, and MPG
- Manual Pulse Generator (MPG): Includes a physical handwheel for precise axis movement.
- Physical Overrides: Dedicated feed rate override knob and spindle speed adjustment keys.
- Safety & Execution: Industrial-grade Emergency Stop, Edit Lock, Cycle Start/Stop, and Reset keys.
- Tooling & Spindle: Physical controls for spindle start/stop, coolant on/off, and tool change sequences.
High-Fidelity 3D Simulation
- Realistic Environment: 3D graphics with full rotation, zoom, and pan capabilities. Includes realistic machining sounds and visual effects like coolant flow and chip evacuation.
- Advanced Kinematics: * Supports 2-Axis (X, Z) for Turning. Supports 3-Axis to 5-Axis for Milling (depending on controller selection).
- Industrial Logic: Simulates G-codes, M-codes, canned cycles, and subprograms.
- Operational Setup: Students must perform part mounting, tool offset calibration, and work offset settings exactly as they would in a factory setting.
Intelligent Safety & Configuration
- Collision Detection: Real-time alarms for tool collisions, axis over-travel, and safety violations (e.g., attempting a cycle start with the virtual door open).
- Configurable Tooling: Virtual lathes and mills can be configured with different turret capacities and tool libraries (Turning, Milling, Threading, and Drilling).
Ideal For:
- Industrial Training Institutes (ITIs)
- Polytechnics & Engineering Colleges
- Vocational Excellence Centers
- Corporate Skill Development Hubs
