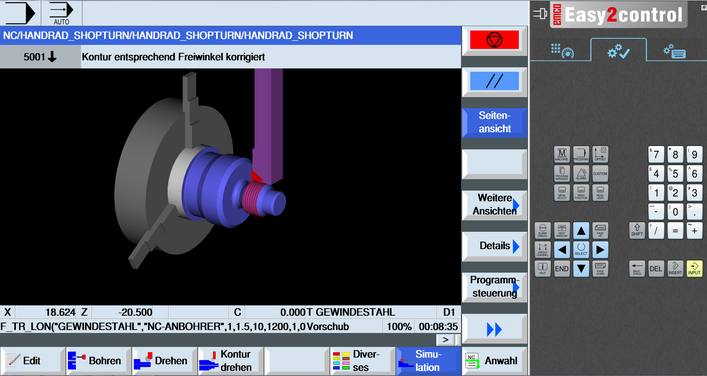

Win3D-View
Win3D-View is a 3D simulation for turning and milling and is available as an option in addition to the WinNC Control.
Tools, blanks, clamping devices, and work processes are highly realistic.
That's the aim of Win3D-View: Visualizing, supporting and avoiding costly collisions.
Graphic simulations of CNC controls are designed especially for industrial experience.
The system checks the programmed travel of the tool to prevent collision with clamping devices and blanks.
Win3D-View displays exceed industry standards.
If there is a conflict, a warning is given so that manufacturing processes can be understood and controlled from the very beginning.
Highlights
Work space is displayed with blank part, tool and clamping devices (chuck, tailstock or vice)
Collision control
Zoom and turning view function
Sectional view
Tools represented in solid or wireframe graphics
Tools represented in solid or wireframe graphics
